| S/No. |
Item |
Parameter(HZD125) |
Item No.:
TB19

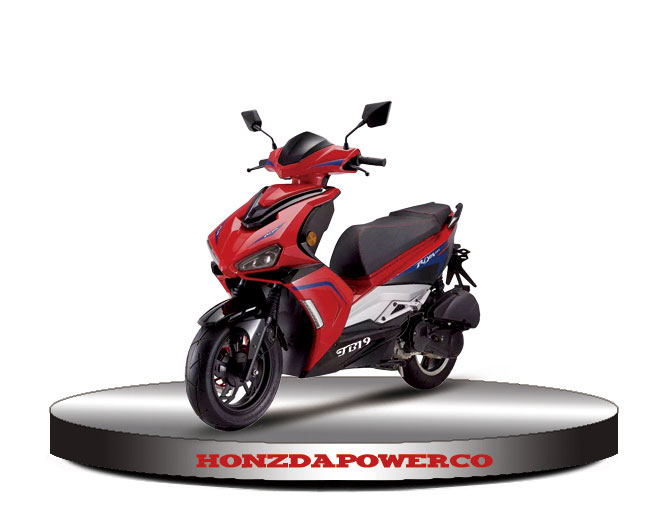

125CC SCOOTER |
SIZE |
1950*710*1160mm |
| Brake type (Front / Rear) |
Front Disc/Rear Drum |
| Wheelbase |
1295mm |
| Cushion height |
790mm |
| Mini. height from the ground |
180mm |
| Engine model |
GY6 |
| Maximum speed |
80Km/h |
| Starting mode |
Electric starting |
| Maximum power |
5.2kW/7500r/min |
| Maximum torque |
7.5Nm//6000r/min |
| Idle speed |
1700،ہ100r/min |
| Bore & Stroke |
52.4mm*57.8mm |
| Compression ratio |
9.2:1 |
| Oil supply mode |
CDI/ECU |
| Fuel tank volume |
7.5L |
| Wheel type (Front / Rear) |
Aluminum wheel |
| Front wheel specification |
120/70-12 |
| Real wheel specification |
120/70-12 |
| Max. loading quanlity |
84 sets/40'HQ in SKD |
