| Model |
Item |
Parameter |
Item No.: TR3B

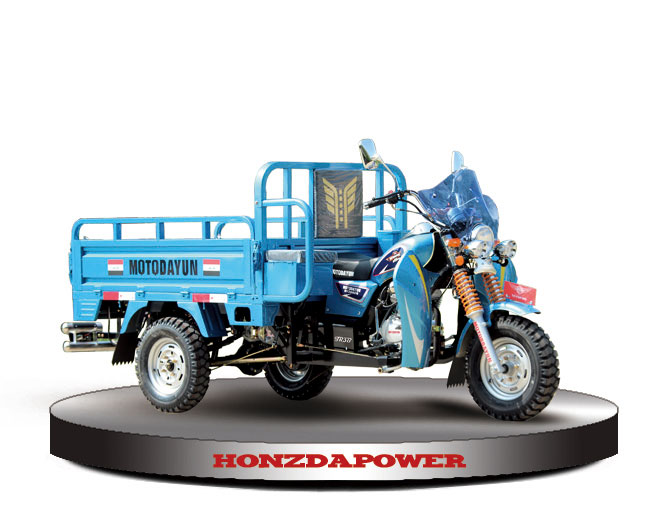

150CC TRICYCLE
( 1.5L-oil Crank,air cooled)
¢ظ one spare rear wheel;
¢ع50# size front shock absorber.
¢غ Spanner&jack;
Labelled: MOTODAYUN |
Cargo Box Size |
1.2*1.7m |
| Battery |
12V 9A |
| Rear Bridge |
4-screw's taper bridge |
| Spread of Axies |
2270mm |
| Gauge |
1010mm |
| Max.Loading Quality |
800kg |
| Brake Stopping Distance |
،ـ7.5m/(30km/h) |
| Maximum Speed |
60Km/h |
| Economical Oil Consumption |
،ـ2.5L/100km |
| Hill Climbing Performance |
،ف12 Degree |
| Fuel Tank Volume |
15L |
| Front Wheel Specification |
5.00-12 |
| Rear Wheels Specification |
5.00-12 |
| Engine Model |
162FMJ |
| Cylinder Head Cover |
with Side heat-sinks |
| Bore & Stroke |
62*49.5mm |
| Demarcation Power |
9.8KW |
| Max. Loading Quantity |
55 sets/40'HQ in CKD |
