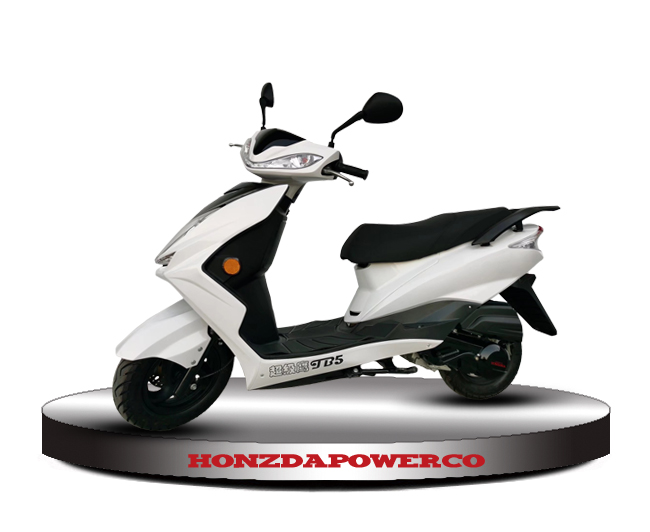

TB5
فئة:Scooter نشرت:2022-2-22 |
 |
|
| Description |
Item |
Parameter |
Remarks |
|
Size |
1880*750*1100mm |
،، |
| ،، |
Brake type (Front / Rear) |
F:Disk / R:Durm |
،، |
| ،، |
Wheelbase |
1250mm |
،، |
| Item No.: |
Cushion height |
750mm |
،، |
| TB5 |
Ground clearance |
140mm |
،، |
| 125CC SCOOTER |
Curb weight |
98kg |
،، |
| ،، |
Engine model |
GY6-125 |
،، |
| Maximum speed |
88km/h |
،، |
| Starting mode |
Electric+Kick Starting |
،، |
| Maximum power |
5.2KW/7500rpm،ہ500rpm |
،، |
| Maximum torque |
7.5N.M/6000rpm،ہ500rpm |
،، |
| Bore & Stroke |
52.4X57.8mm |
،، |
| Compression ratio |
9.2:1 |
،، |
| Ignition & Oil supply mode |
CDI&Carburetor |
،، |
| Fuel tank volume |
5L |
،، |
| Wheel type (Front / Rear) |
Aluminum |
،، |
| Front wheel specification |
3.50-10 |
،، |
| Real wheel specification |
3.50-10 |
84 sets/40'HQ in SKD | |
|
|
