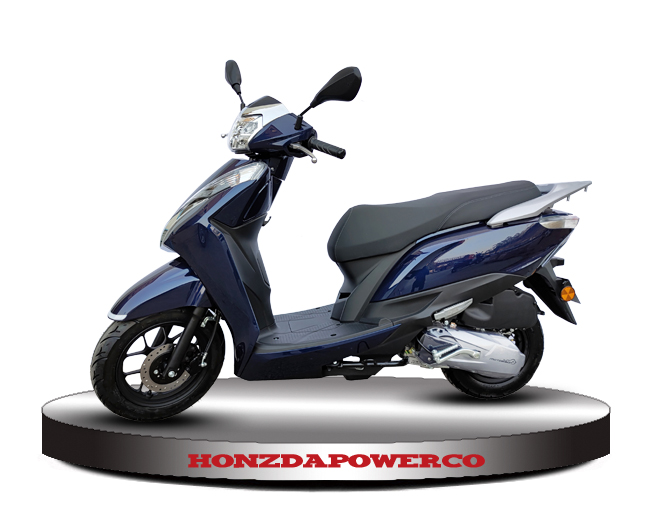

TB6h
فئة:Scooter نشرت:2022-2-22 |
 |
|
| Description |
Item |
Parameter |
Remarks |
|
Size |
1840*680*1120mm |
،، |
| ،، |
Brake type (Front / Rear) |
F:Disk / R:Durm |
،، |
| ،، |
Wheelbase |
1250mm |
،، |
| Item No.: |
Cushion height |
745mm |
،، |
| TB6h |
Ground clearance |
120mm |
،، |
| 150CC SCOOTER |
Curb weight |
100kg |
،، |
| ،، |
Engine model |
GY6-150 |
،، |
| Maximum speed |
92km/h |
،، |
| Starting mode |
Electric+Kick Starting |
،، |
| Maximum power |
6.1KW/7500rpm،ہ500rpm |
،، |
| Maximum torque |
9.3N.M/6000rpm،ہ500rpm |
،، |
| Bore & Stroke |
57.4X57.8mm |
،، |
| Compression ratio |
9.2:1 |
،، |
| Ignition & Oil supply mode |
CDI&Carburetor |
،، |
| Fuel tank volume |
5.5L |
،، |
| Wheel type (Front / Rear) |
Aluminum |
،، |
| Front wheel specification |
90/90-12 |
،، |
| Real wheel specification |
350-10 |
84 sets/40'HQ in SKD | |
|
|
