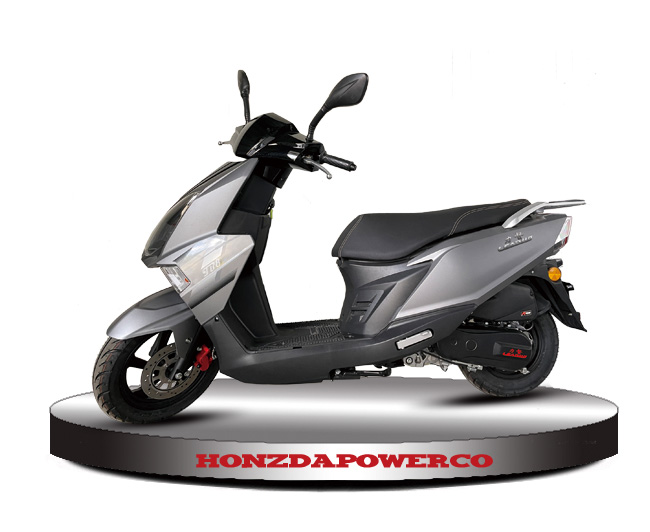

TB8
Category£ºScooter Published£º2021-10-5

S/No. Item Parameter(HZD125)
Item No.:
TB8

125CC SCOOTER		 SIZE 1880*680*1130mm
Brake type (Front / Rear) Front Disc/Rear Drum
Wheelbase 1290mm
Cushion height 685mm
Mini. height from the ground 150mm
Engine model GY6
Maximum speed 93Km/h
Starting mode Electric starting
Maximum power 6.8kW/7500r/min
Maximum torque 9.8 Nm//6000r/min
Idle speed 1700¡À100r/min
Bore & Stroke 53.5mm*55.1mm
Compression ratio 9.5:1
Oil supply mode CDI/ECU
Fuel tank volume 5.5L
Wheel type (Front / Rear) Aluminum wheel
Front wheel specification 90/90*12
Real wheel specification 3.50*10
Max. loading quanlity 84 sets/40'HQ in SKD
