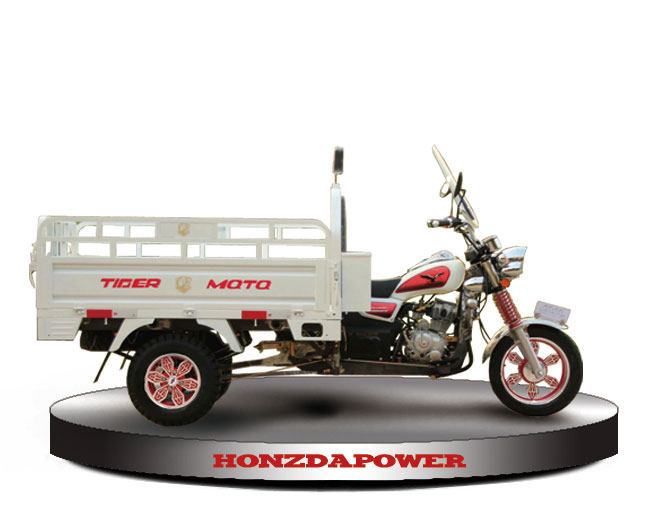

TR10A
Corriente：Triciclos Categoría：2017-2-21

Model Item Parameter
Item No.: TR10A

150CC TRICYCLE
(1.0 Oil-Crank,Air-Cooled,CDI)
① one spare rear wheel;
②50# size front shock absorber;
③ Spanner&jack.		 Cargo Box Size 1.2*1.8m
Battery 12V 9A
Rear Bridge 4-screw's taper bridge
Spread of Axies  2520mm
Gauge  1040mm
Max.Loading Quality  800kg
Brake Stopping Distance ≤7.5m (30km/h)
Maximum Speed 60Km/h
Economical Oil Consumption ≤2.5L/100km
Hill Climbing Performance ≥12 Degree
Fuel Tank Volume 14L
Front Wheel Specification 110/90-16
Rear Wheels Specification 5.00-12
Engine Model HP162FMJ
Cylinder Head Cover 3-bolt's
Bore & Stroke 62*49.5mm
Demarcation Power 8.8KW
Max. Loading Quantity 50 sets/40'HQ in CKD
