TR9D
Corriente：Triciclos Categoría：2020-11-19

Model Item Parameter
Item No.: TR9D

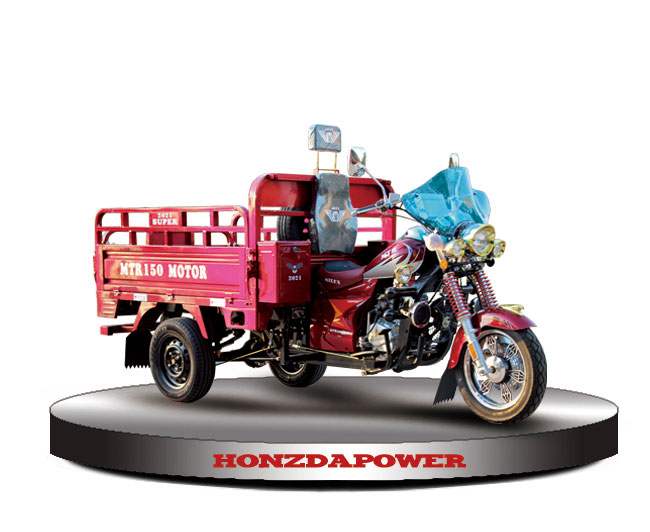

150CC TRICYCLE
( 1.5L-oil Crank,air cooled)
① one spare rear wheel;
②50# size front shock absorber.
③ Spanner&jack;		 Cargo Box Size 1.2*1.7m
Battery 12V 9A
Rear Bridge 4-screw's taper bridge
Spread of Axies  2270mm
Gauge  1010mm
Max.Loading Quality  800kg
Brake Stopping Distance ≤7.5m/(30km/h)
Maximum Speed 60Km/h
Economical Oil Consumption ≤2.5L/100km
Hill Climbing Performance ≥12 degree
Fuel Tank Volume 15L
Front Wheel Specification 5.00-12
Rear Wheels Specification 5.00-12
Engine Model 162FMJ
Cylinder Head Cover with Side heat-sinks
Bore & Stroke 62*49.5mm
Demarcation Power 9.8KW
Max. Loading Quantity 55 sets/40'HQ in CKD
