TB20
Corriente：TBX Series Categoría：2022-3-3

Description Item Parameter


 Size 1960*770*1130mm
　 Brake type (Front / Rear) F:220mm R:160mm Disc Brake
　 Wheelbase 1370mm
Item No.: Cushion height 760mm
TB20 Ground  clearance 190mm

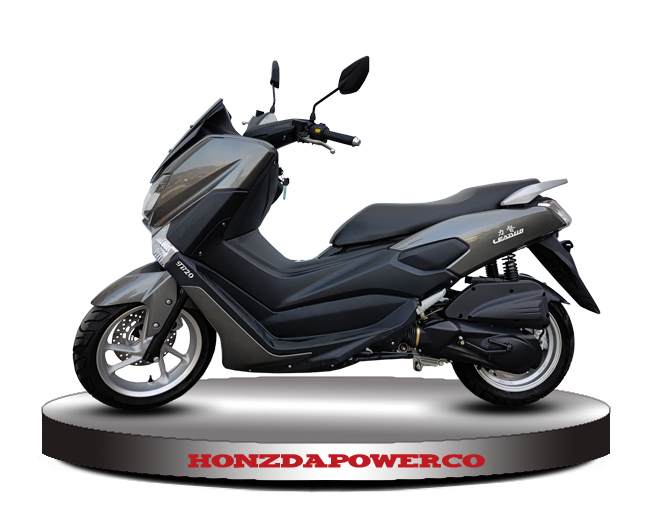

150CC SCOOTER Curb weight 108kg
　 Engine model HZD150
Maximum speed 92km/h
Starting mode Electric+Kick Starting
Maximum power 6.1KW/7500rpm±500rpm
Maximum torque 9.3N.M/6000rpm±500rpm
Bore & Stroke 57.4X57.8mm
Compression ratio 9.2:1
Ignition & Oil supply mode CDI&Carburetor
Fuel tank volume 7.5L
Wheel type (Front / Rear) Aluminum
Front wheel specification 130/60-13
Real wheel specification 130/60-13
